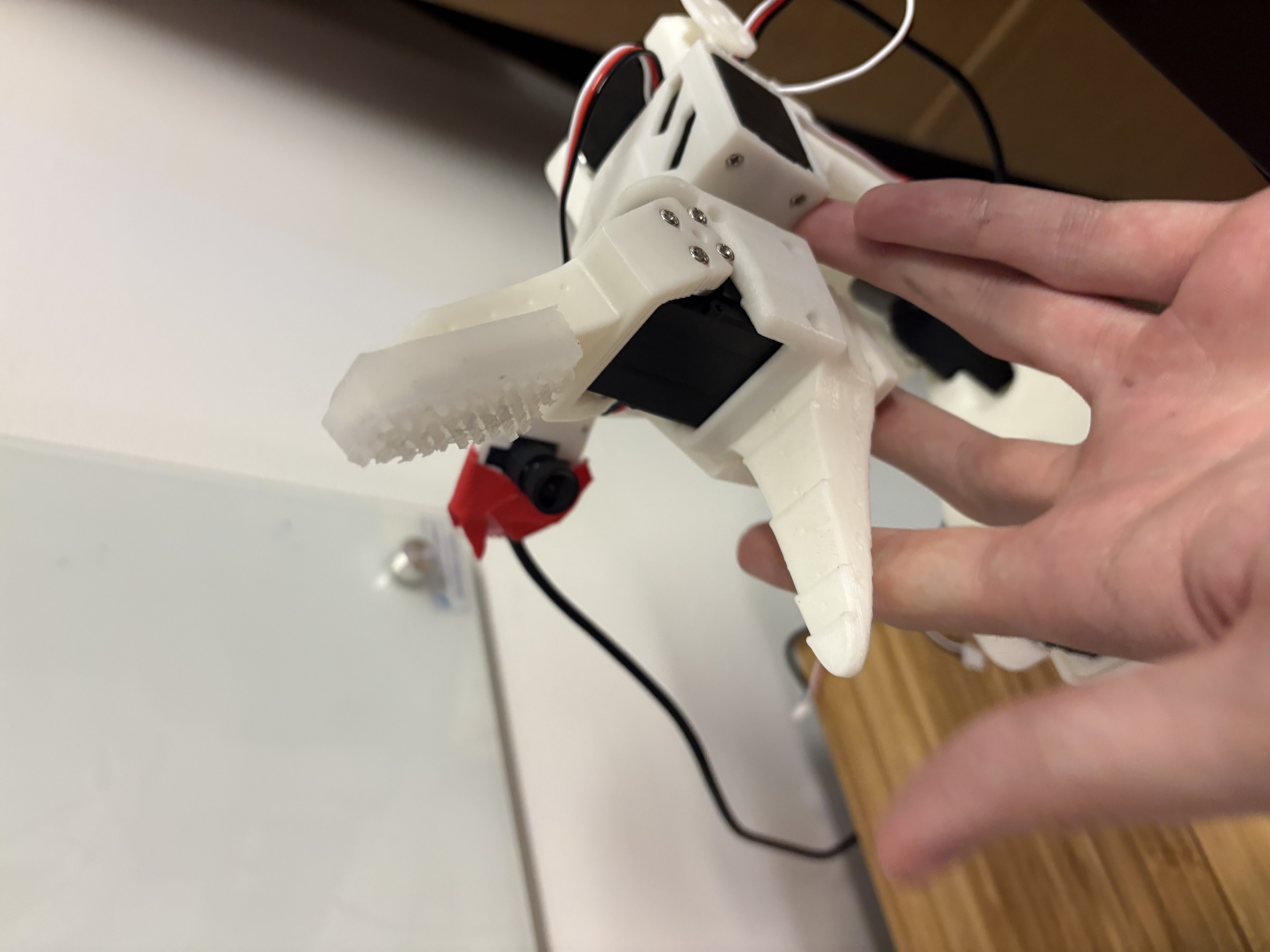

Building tactile sensors for robot hands. The approach: cast a custom piezoresistive material into a fingertip shape and embed electronics directly into it to read both normal force and shear. When the fingertip contacts a surface, resistance changes across the array — that signal gives you contact location, force magnitude, and shear direction. Integrated with the LeRobot SO-101 gripper as the development platform.
The Fingertip

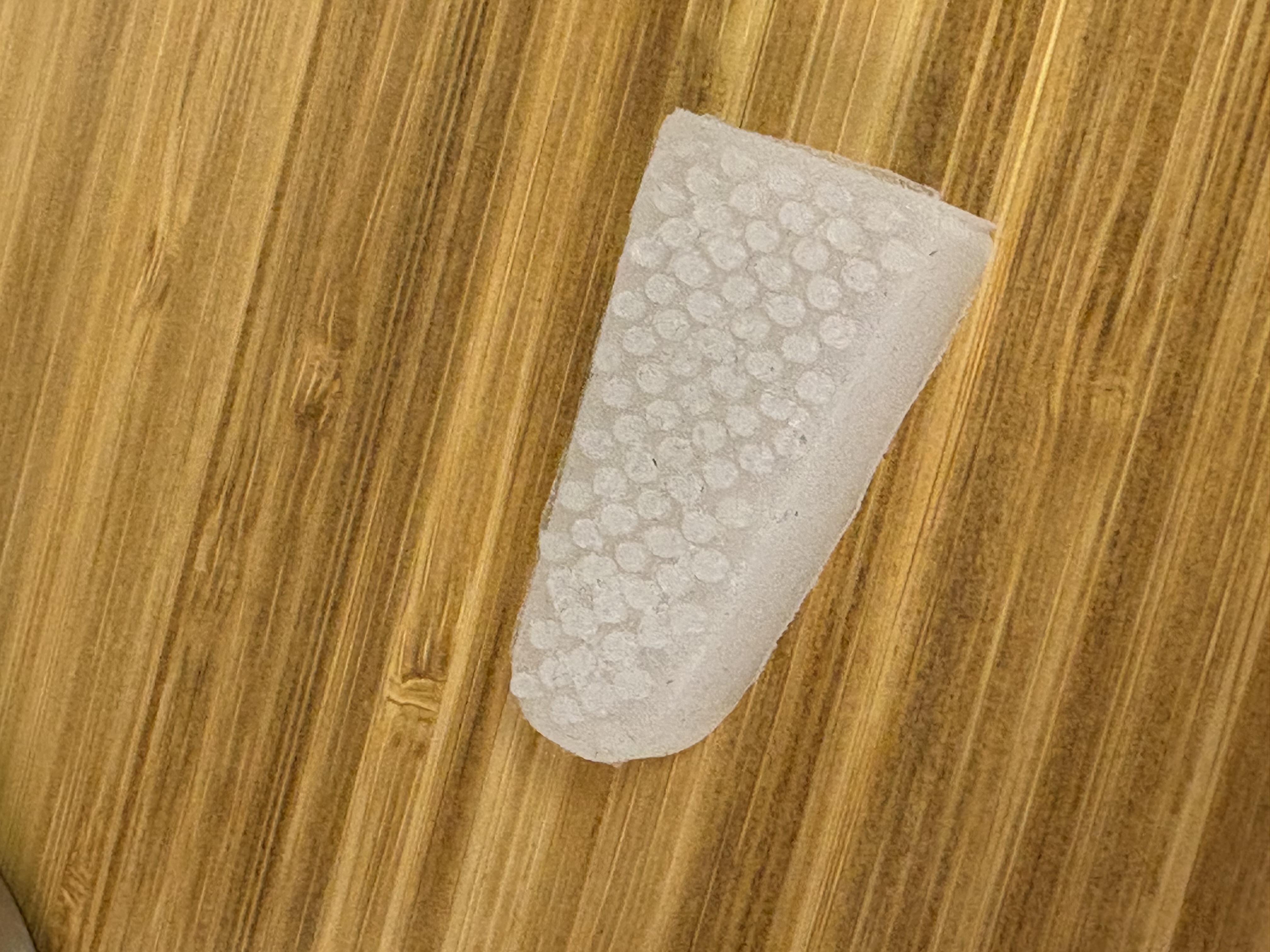

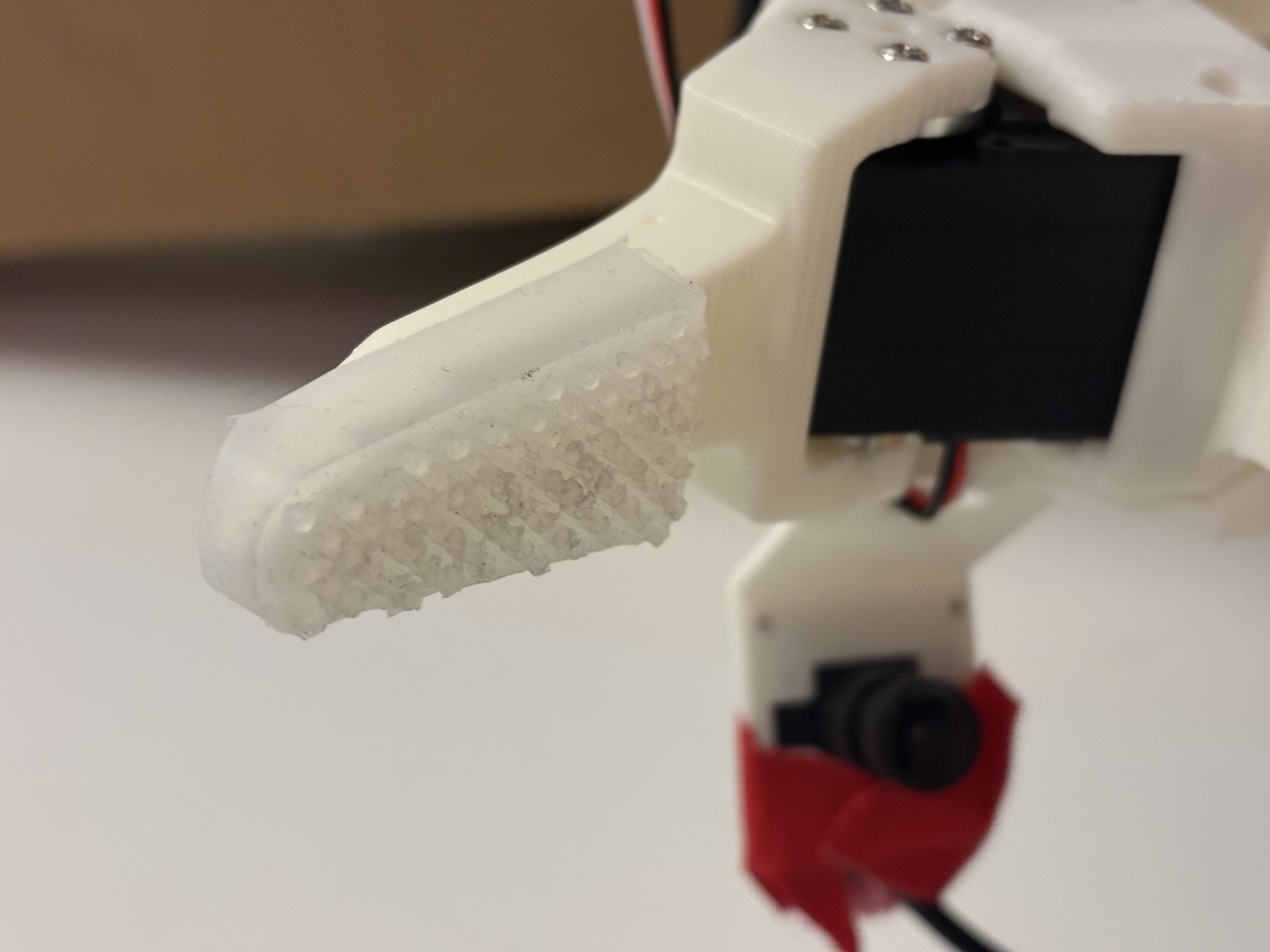

The piezoresistive pad is cast from a silicone-carbon composite. The bump array on the surface concentrates contact stress onto individual sensor nodes, improving spatial resolution. A small camera module inside the finger captures marker deformation for optical cross-validation.
Electronics

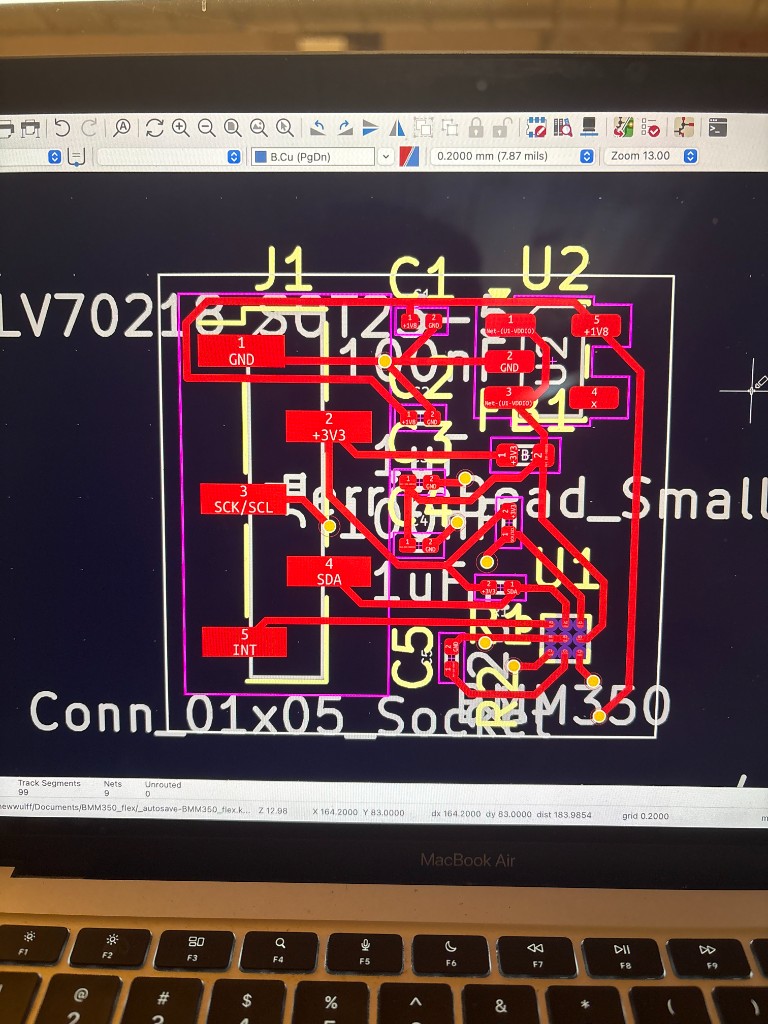

Custom PCB handles the multiplexing, ADC, and power for the sensor array. The board fits inside the finger housing and connects over SPI.
Casting Mold Design

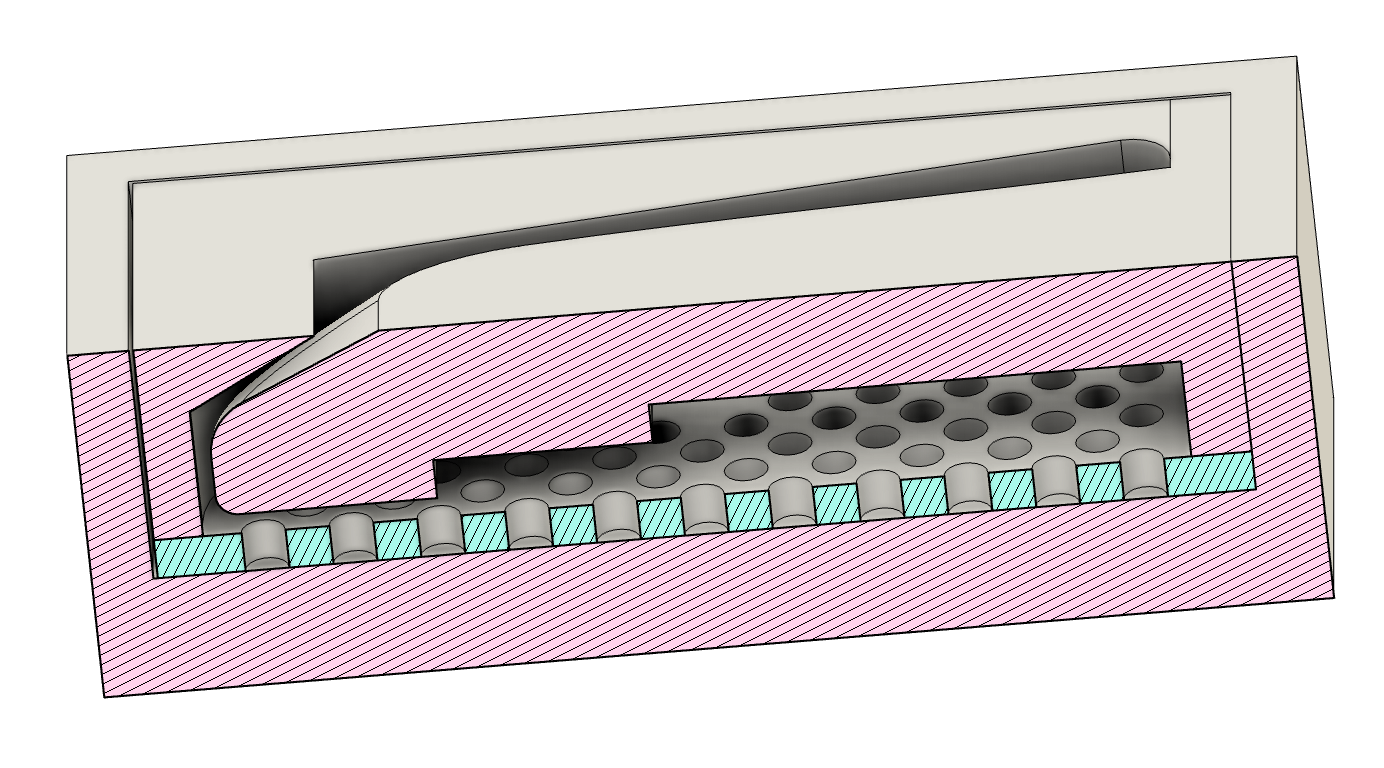

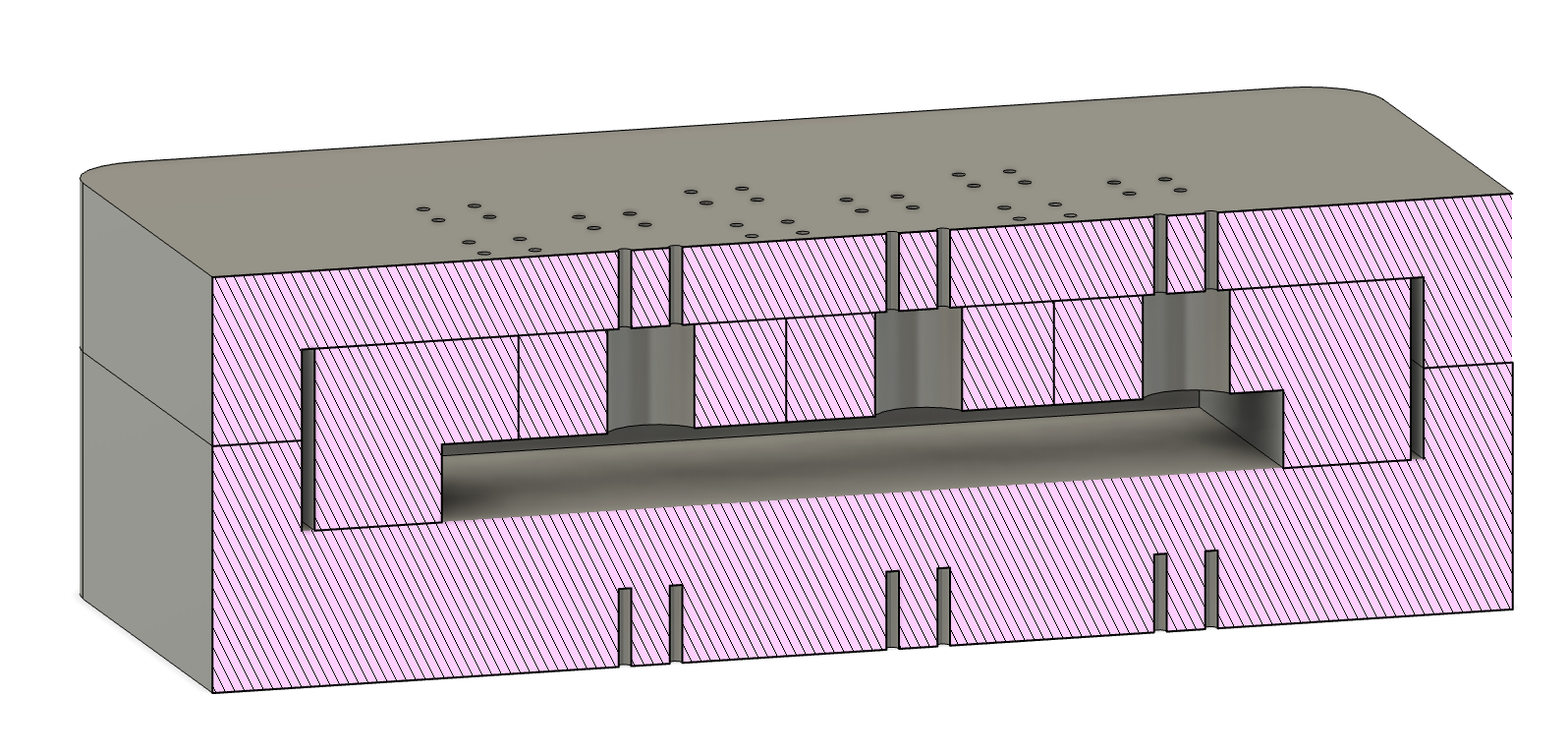

Custom molds designed in SolidWorks for casting the piezoresistive sensor pads. The mold forms the bump array geometry and electrode pockets simultaneously — cyan features show electrode contact zones, cylindrical pins form the pressure-concentrating bumps. Section views reveal the internal channel structure and lid alignment features.
Fabrication

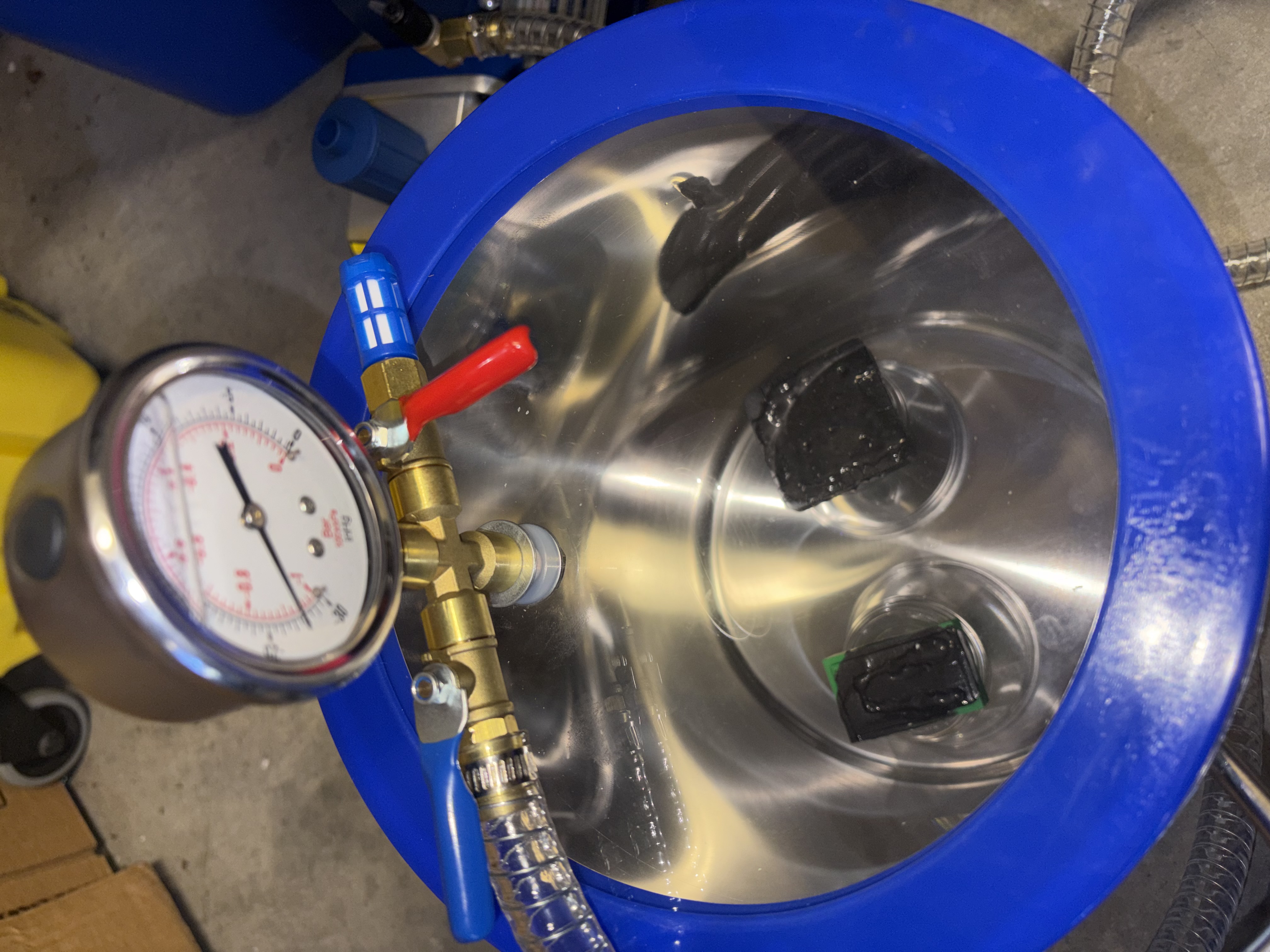

The piezoresistive pads are degassed in a vacuum chamber after casting to remove air bubbles from the silicone mixture before curing.
Sensing
- Modality: Piezoresistive (primary) + optical deformation tracking
- Detects: Normal force, shear force, contact location
- Material: Custom silicone-carbon composite — cast in-house
Hardware
- PCB: Custom board — multiplexed ADC, SPI interface, LED illumination
- Platform: LeRobot SO-101 gripper (drop-in compatible)
- Target BOM: Sub-$30 per fingertip
Status
- Hardware prototype complete — sensor design, casting, PCB
- Dataset collection and model training in progress
